RYLS-011 Single nozzle Wash face and eyes Vertical eye wash station

Ø Product features:Single nozzle Wash face and eyes Vertical eye wash station

Ø Material: SS304

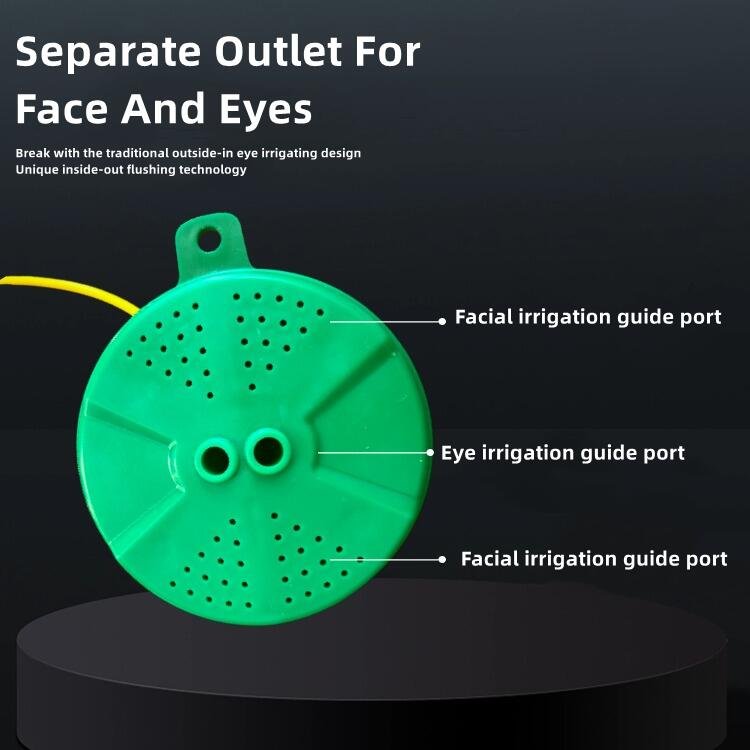

Ø Function: Eye and face rinse

Ø Nominal pressure: 1.0 Mpa

Ø Work pressure: 0.2-0.4 Mpa

Ø Test pressure: 2.0 Mpa

Ø Use ambient temperature: 0-40C

Ø Eye/Face Washing Water Flow: >11.4 L/MIN

Ø Eyewash flow: 1./MIN

Ø Equipped with dual flow control valve (optional device)

Ø Influent height: 850 mm

Ø Drainage height: 101mm

Ø Inlet size:1/2 inch intemal thread

Ø Drainage outlet size: 1-1/4 inch internal thread

Ø Foot pedal: add foot pedal, wash eyes open and close more convenient

Ø Production Standard: ANSIZ358.1-2014

Ø Note: The size of the intake can be customized according to the user's  needs. It is suggested that emergency valves and filters be installed and

Ø maintained at the intake.
